Threshold Inserter

By right mouse clicking on the traces area a popup menu will be shown. The same menu items are also accessible from the “Traces” menu while in EEG mode. It allows, among the others, to select four different modalities to automatically (or interactively) insert events based on some properties of the acquired signals

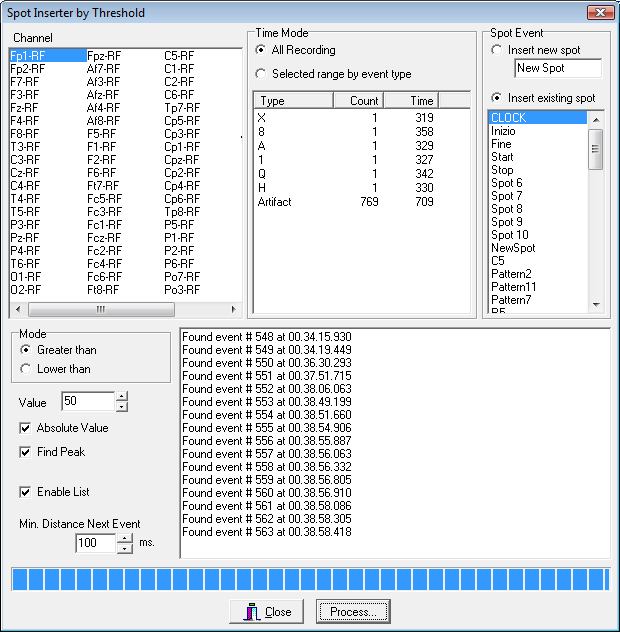

By selecting the "Threshold Spot Inserter…item the following Dialog Box appears:

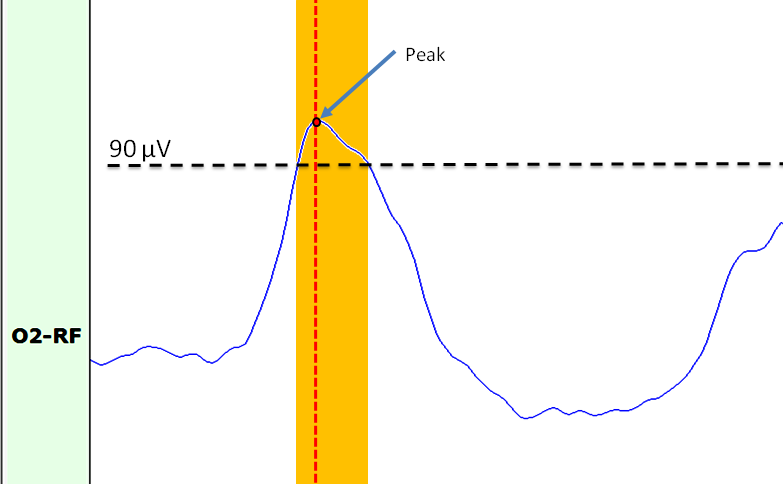

This is similar to the “Artifact state Inserter…” but provides also a way of finding peaks, so that when an interval which satisfies the threshold criteria is found only the peak value is inserted as a Spot event.
