Manual Events Insertion

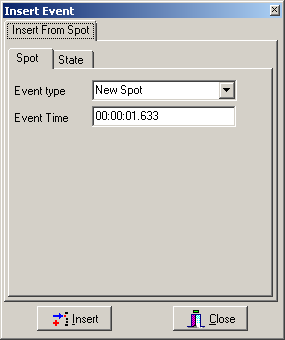

Manual insertion of Spot Events can be done in EEG mode by left clicking the mouse on the traces view while the Ctrl key is pressed. This will show a Dialog Box in which the user can select the event type to be inserted or type into the text box the label associated to a new Spot type.

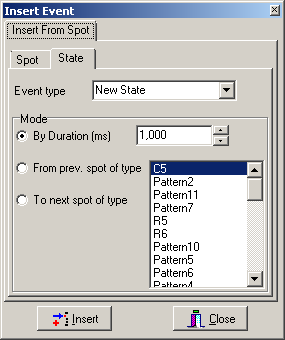

Also a vertical bar, that can be moved with the mouse, will appear, indicating the time in which the event will be inserted. In a similar way States can be inserted: in this case, instead, the user has to press left button of the mouse while the Shift key is pressed. A similar Dialog Box for selecting the event type will be shown and two vertical bars (for setting the begin and end time of the event) will be also displayed.

.
